JACO 10-6-4-P-O Polypropylene Male Connector 3/8 OD Tube x 1/4 MPT
JACO Manufacturing Company

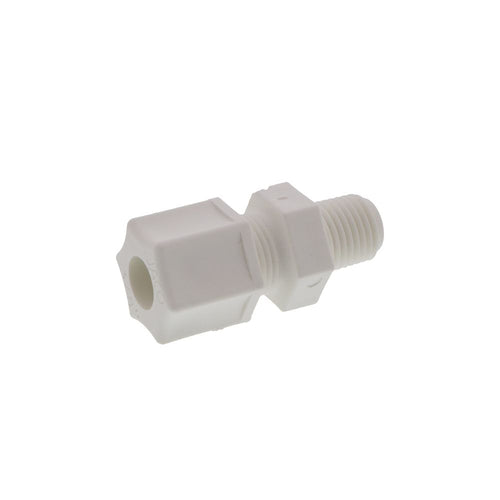

JACO 10-6-4-P-O Polypropylene Male Connector 3/8 OD Tube x 1/4 MPT
Part Number: 10-6-4-P-O
in stock
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
More expected soon
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.
Specifications:
- Connections: 3/8" OD tube x 1/4" MPT
- Fitting Material: polypropylene
- Ferrule nut with integral sleeve for use with soft plastic tubing
- Ferrule nut thread size: 5/8-20
- Max Pressure: 50 psi
- Temperature Range: -30° - 215° F
- Color: opaque white
- Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
- Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
- Low resistance to flow due to the smooth internal surface of the fittings.
- Resistance to scale buildup.
