Vu-Flow Hot Water Sediment Filter System - 3/4"

Home / Filters & Cartridges / Rusco Spin-Down & Sediment Traps / Vu-Flow Hot Water Sediment Filter System - 3/4"

VuFlow

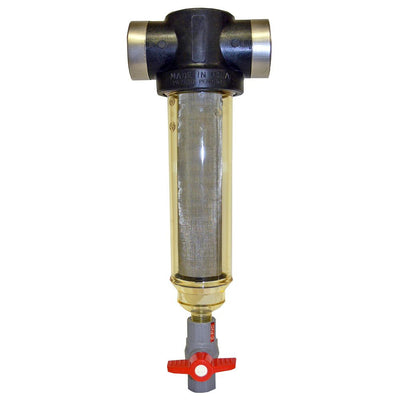

Vu-Flow Hot Water Sediment Filter System - 3/4"

Part Number: 3/4-30-HT-P

VuFlow

Vu-Flow Hot Water Sediment Filter System - 3/4"

Part Number: 3/4-30-HT-P

One-time purchase

Subscription

Subscription details

Your price:

Choose

30 Mesh (533 micron)

60 Mesh (254 micron)

100 Mesh (152 micron)

140 Mesh (104 micron)

200 Mesh (74 micron)

Quantity

The Vu-Flow Hot Water Sediment Filter System can operate with water up to 200ºF because of the glass filled polypropylene head that comes with female threads with a stainless steel reinforcing ring over the inlet/outlet. The filter screens are also a durable stainless steel, as well as a chemically resistant and heat resistant filter cover.

The Rusco Hot Water filter systems utilize centrifugal separation technology to filter particulates from the water, which is clearly visible through the clear filter cover. The stainless steels screens can also be easily cleaned and reused over and over again.

Applications:

Capturing scale flakes from water heaters
Hydronic heating systems
Industrial heat exchangers
Cooling tower make up and evaporator water
Domestic or commercial hot water heaters
Industrial (machine coolant and cutting fluids)

Spas/jacuzzis

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Head Style	T-Style
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	200
Mesh Size	30 60 100 140 200
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 74 µm
Outlet Connection	3/4" FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Housing Resistance	Hot Water Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.55
